Stackable Poly Oil Tanks and Gravity Feed Systems
Newberry supplies Tote-A-Lube, Cubetainer, Wall-Stacker and Slimtainer stackable poly tanks and gravity feed systems for bulk oil storage. Applications include quick lube shops, dealerships, fleet maintenance facilities and manufacturing plants.
Stackable Oil Tanks Save Floor Space
Stackable oil tanks store bulk fluids vertically instead of across the floor. Tanks are constructed from UL rated food grade polyethylene resin with corrugated side walls and molded in fluid level markings for visual inventory checks. A single system can hold multiple fluids, including oils, lubricants, hydraulic fluids, ATF, antifreeze and DEF.
Choose Your Stackable Tank Brand
Use the footprints and capacities below to narrow the options, then shop the brand you need or contact Newberry
Tote-A-Lube Tanks and Gravity Feed Systems
Tote-A-Lube is the original stackable poly tank line, suited to storing multiple fluids, DEF, oils and lubricants in a single stacked system. Tanks stack up to four high. All systems include standard gravity feed dispense and can be configured with dispense equipment packages, secondary containment vessels and remote fill kits for the top tanks. Tanks can be bolted to the floor for added security, placed on a steel base with casters, or mobilized into custom lube skids.
Small Tote-A-Lube specs
- Tank footprint: 32 in. W x 32 in. D
- Capacities: 35, 70 and 120 gallons
- Gravity feed system footprint: 36 in. W x 44 in. D
Large Tote-A-Lube specs
- Tank footprint: 42 in. W x 42 in. D
- Capacities: 130, 180, 240 and 330 gallons
- Gravity feed system footprint: 43 in. W x 54 in. D

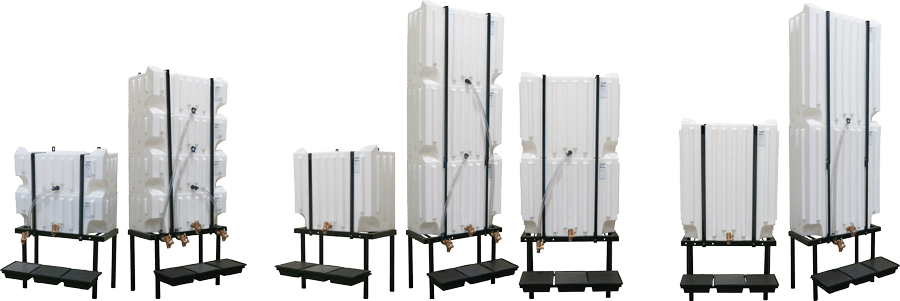

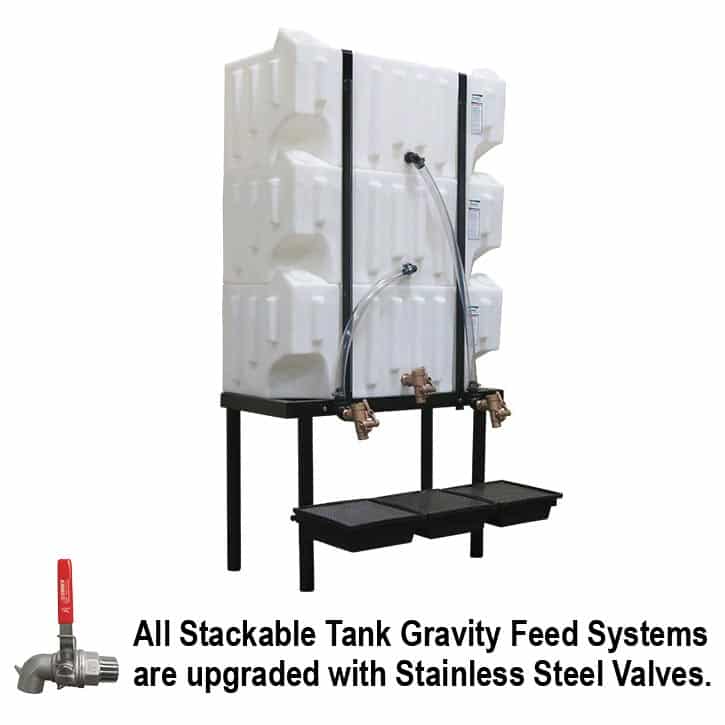

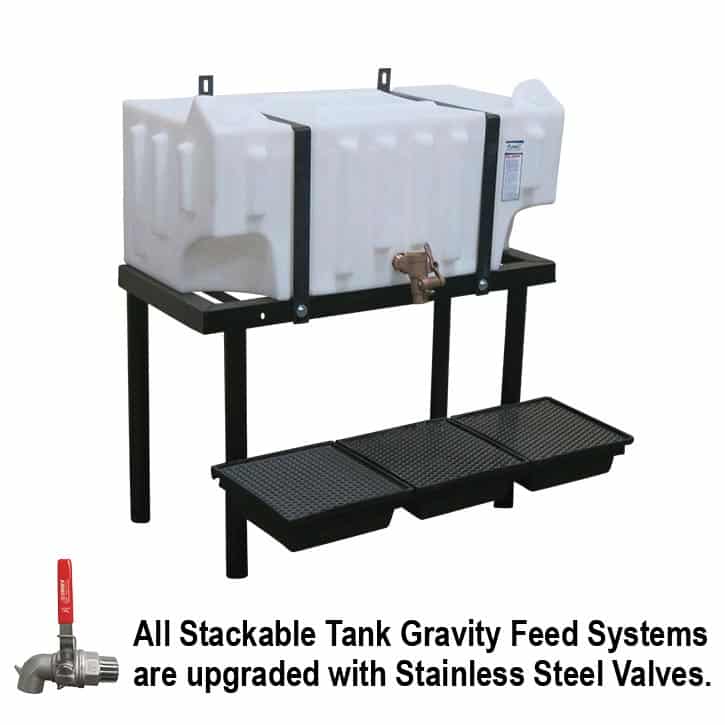

Wall-Stacker Tanks and Gravity Feed Systems
Wall-Stacker has the smallest gravity feed footprint of the four brands at 38 in. by 30 in., for constrained locations such as bay ends and pits. Tanks stack up to four high in multi fluid configurations and use steel wall straps to secure the system to a wall. Each tank has two angled fill ports.
Wall-Stacker specs
- Tank footprint: 38 in. W x 19 in. D
- Capacities: 32, 71 and 115 gallons
- Gravity feed system footprint: 38 in. W x 30 in. D

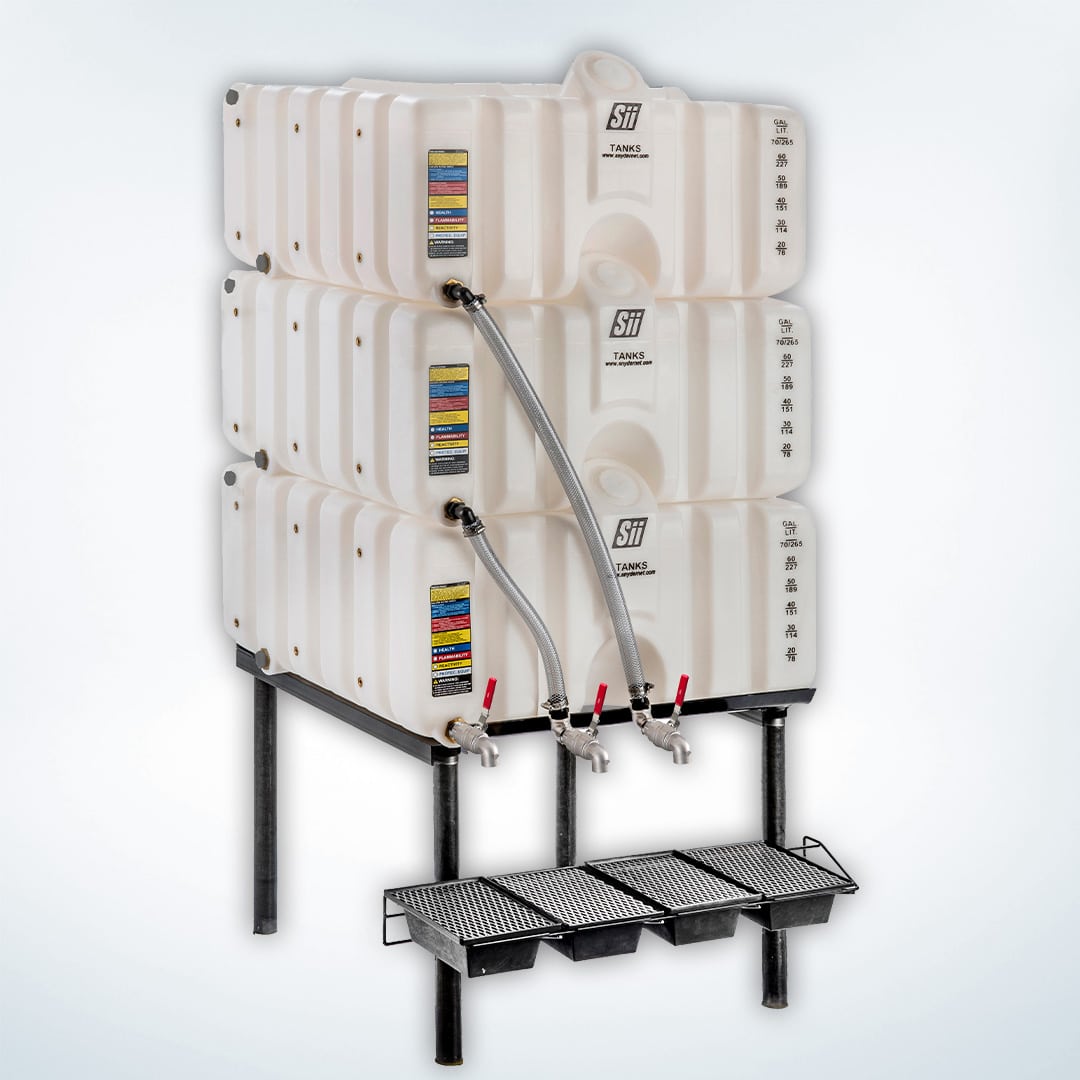

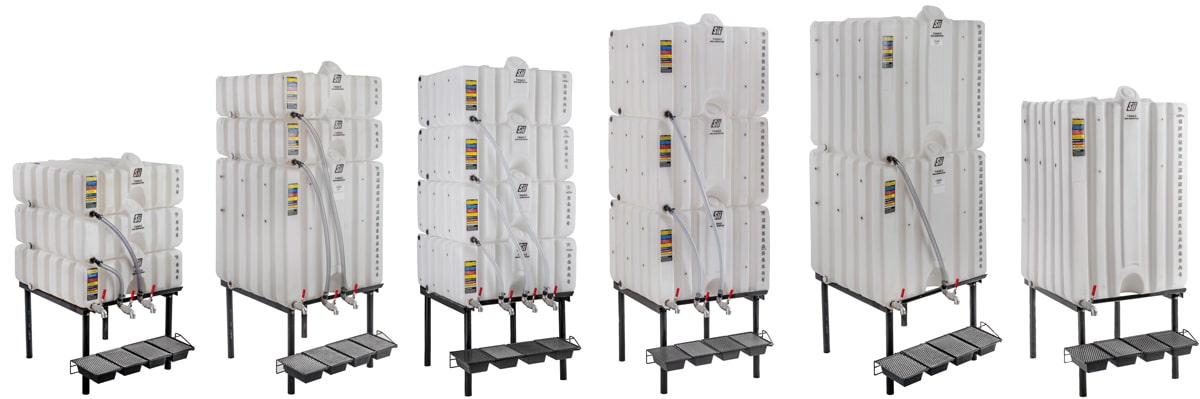

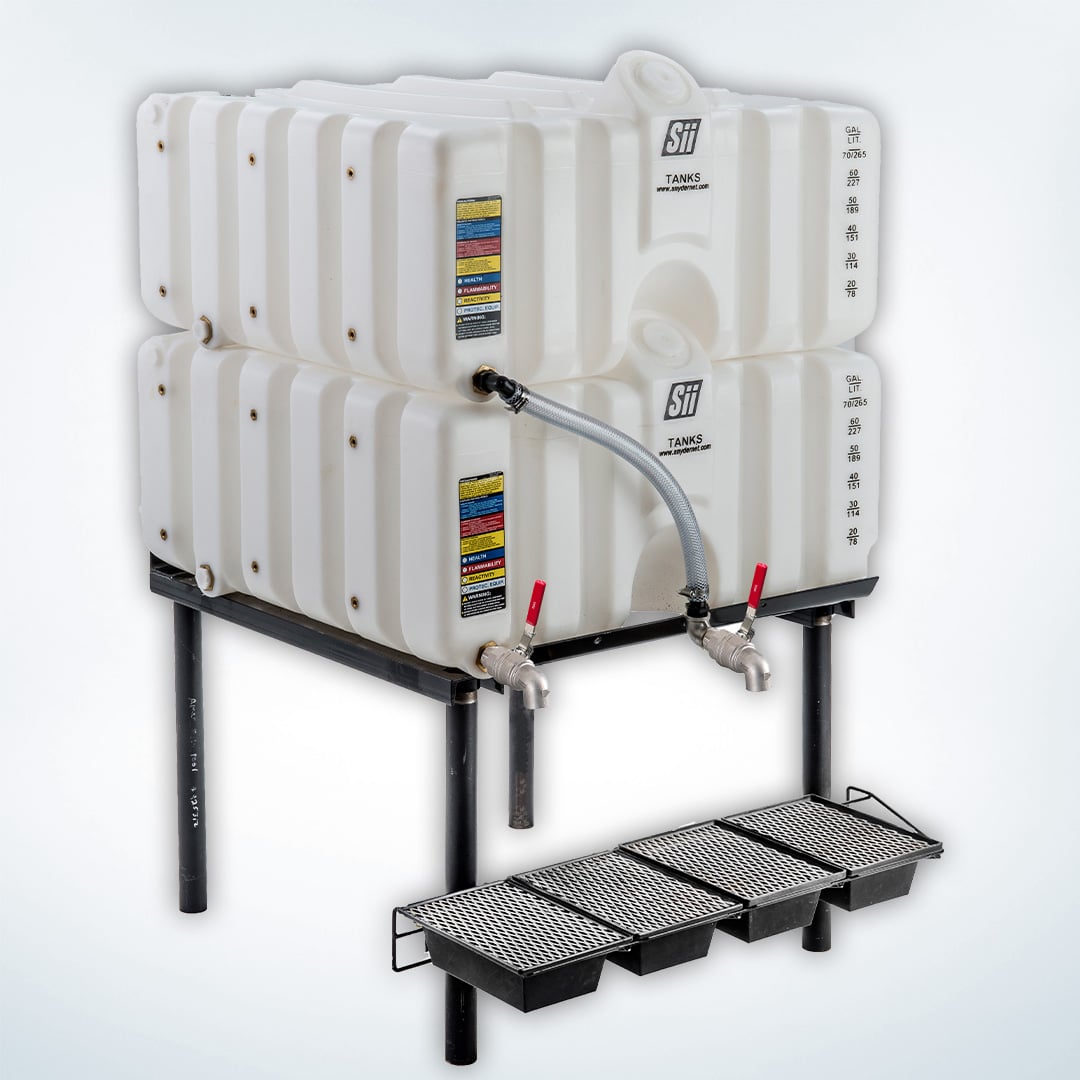

Cubetainer Stackable Tanks and Gravity Feed Systems
Cubetainer tanks share a 36 in. by 36 in. footprint across every capacity, so 2, 3 or 4 tanks can be arranged in a range of stacking configurations without changing the system footprint. Each tank has a 2 in. center fill port and two 1 in. NPT stainless steel dispense fittings on the front and both ends for multiple installation options. Tanks are constructed with virgin high density FDA compliant polyethylene resin, with molded in and inked fluid level markers that allow visual inspection without external sight gauges.
Cubetainer specs
- Tank footprint: 36 in. W x 36 in. D
- Capacities: 60, 80, 120, 180 and 260 gallons
- Gravity feed system footprint: 36 in. W x 36 in. D

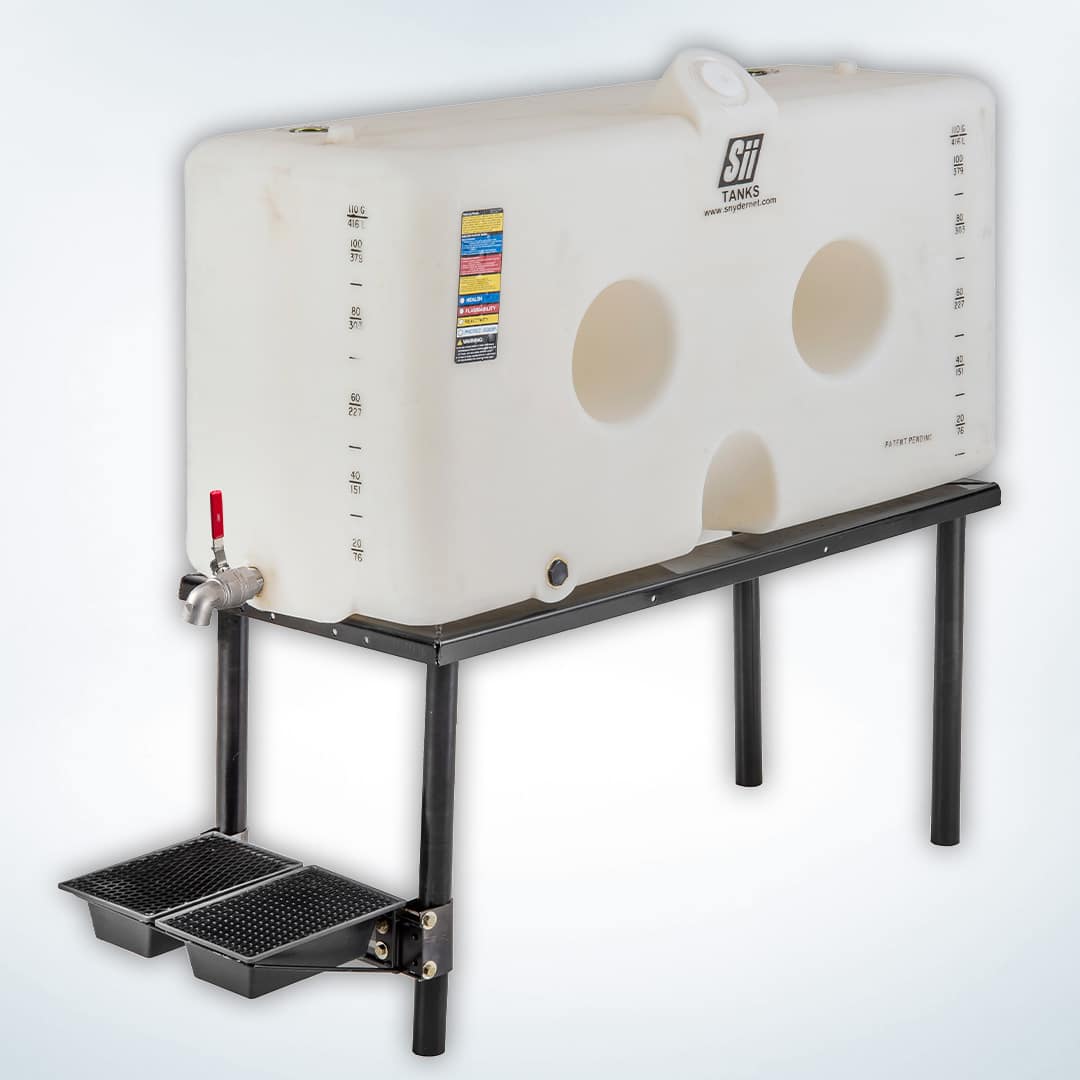

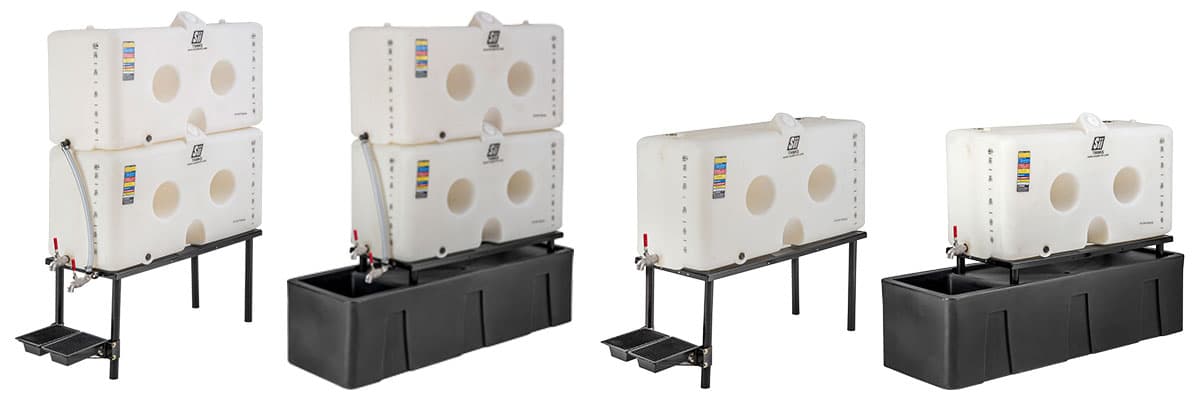

Slimtainer Stackable Tanks and Gravity Feed Systems
Slimtainer has a narrow 22 in. footprint for optimizing floor space in automotive workshops and between bays. Stack one or two 120 gallon tanks per system. Each tank has a 2 in. center fill port and three molded in stainless steel 1 in. NPT bottom dispense fittings on the front and both ends, providing versatility across installation options.
Slimtainer specs
- Tank dimensions: 54 in. W x 22 in. D x 32 in. H
- Capacity: 120 gallons
- Gravity feed system with drip tray: 65.5 in. W x 23 in. D
- Gravity feed system with containment vessel: 74 in. W x 24.5 in. D
Compare the Features of Each Stackable Tank Brand
| Stackable Tanks | Small Tote-A-Lube | Large Tote-A-Lube | Wall-Stacker | Slimtainer | Cubetainer |
|---|---|---|---|---|---|
| Tank footprint | 32 in. x 32 in. | 42 in. x 42 in. | Narrow 38 in. x 19 in. | Narrow 22 in. x 54 in. | 36 in. x 36 in. |
| Tank capacities | 35, 70, 120 gal. | 130, 180, 240, 330 gal. | 32, 71, 115 gal | 120 gal. | 60, 80, 120, 180, 260 gal. |
| Tank material | UL rated food grade polyethylene resin | UL rated food grade polyethylene resin | UL rated food grade polyethylene resin | UL rated food grade polyethylene resin | UL rated food grade polyethylene resin |
| Top fill port | (1) angled fill port with 2 in. NPT poly cap | (1) angled fill port with 2 in. NPT poly cap | (2) angled fill ports with 2 in. NPT poly cap | (1) 2 in. center fill opening | (1) 2 in. center fill opening |
| Top tank openings | 2 in. NPT plug | 2 in. NPT plug | N/A | (2) 2 in. NPT | (1) 2 in. NPT |
| Bottom dispense fitting | (1) 1 in. NPT stainless steel | (1) 1 in. NPT stainless steel | (1) 1 in. NPT stainless steel | (3) 1 in. NPT stainless steel | (2) 1 in. NPT stainless steel on front and both ends |
| Front molded inserts | 120 gal. tank only | Yes | N/A | N/A | N/120, 180, 260 gal. tanksA |
| Side molded inserts | N/A | Yes | N/A | N/A | 80, 120, 180, 260 gal. tanks |
| Top molded inserts | 120 gal. tank only | Yes | N/A | N/A | N/A |
| Side walls | Corrugated tank wall design | Corrugated tank wall design | Corrugated tank wall design | Corrugated tank wall design | Corrugated tank wall design |
| Fluid level markings | Molded in (gallons) | Molded in (gallons) | Molded in (gallons) | Molded in and inked (gallons and liters) | Molded in and inked (gallons and liters) |
Gallery
Accessories for Every Stackable Tank Brand
Accessories available for each brand of stackable poly tank include the following.
Configure a Stackable Oil Tank System
Shop stackable oil tanks and gravity feed systems online, or contact Newberry to discuss a configuration for your facility.
